How to Use This Tool

Last updated: 10 Jun 2024

Matrix Layout
Conditional Graphics
Procedure Displays
Stacked Views
Extract Telemetry

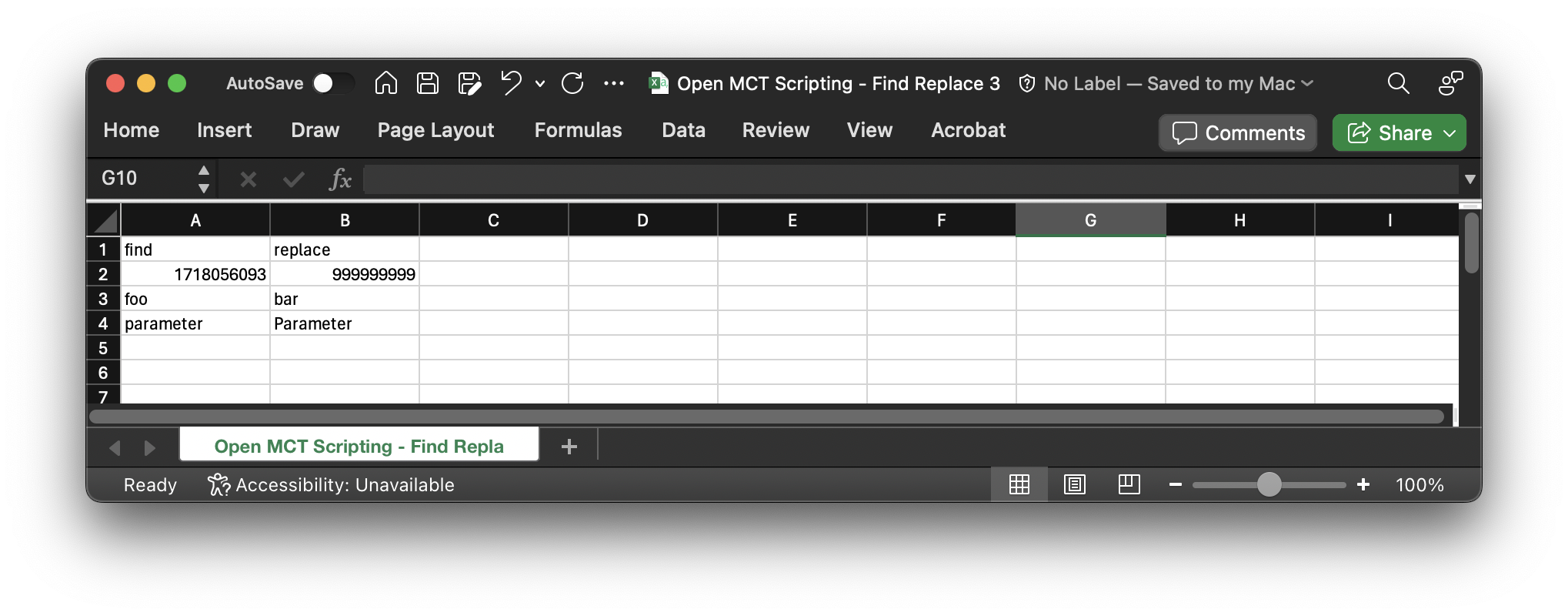

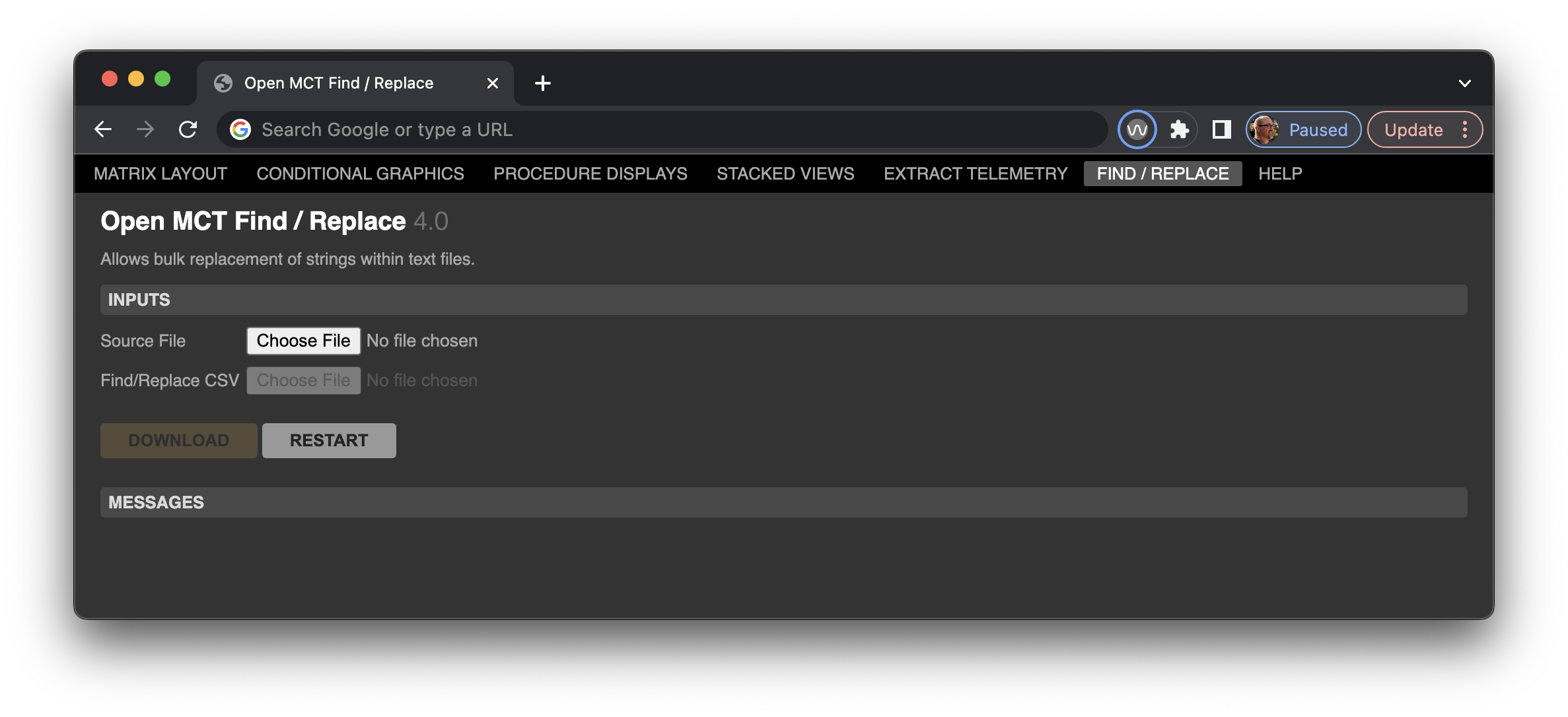

Find / Replace Text

Overview

Allows large scale creation of a variety of Open MCT views, many with integrated Conditional styling. Source files include tabular CSV, PRIDE .prl files, and Python ground control scripts (GCS). The tool outputs JSON files that are imported into Open MCT.

Create and/or gather input files.
Run those inputs through this tool, which then outputs an Open MCT import-ready JSON file.
Import that JSON file into Open MCT in the environment and location desired.

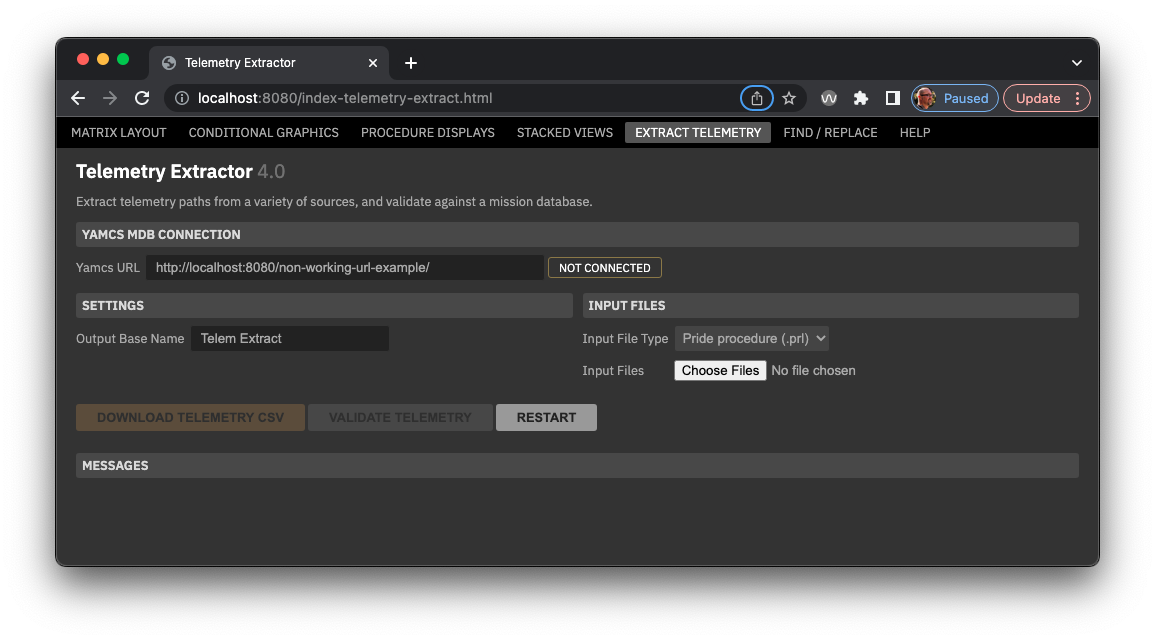

The tool also provides a capability to extract telemetry paths from GCS scripts and PRIDE PRL files into a CSV output.

Matrix Layout

Picture of tool interface

What It Does

Uses two input CSV files, one for telemetry and conditions and the other for layout and creates a single Display Layout as a result.
- The layout can display telemetry elements in the source file as alphanumerics or Condition Widgets, depending on the specification in the matrix layout CSV file.
- The matrix layout defines a grid with variable column widths and row heights.
- Elements can be statically and/or conditionally styled.
- Text elements can be added as labels; labels can span multiple columns.
Creates Condition Sets for each specified row in the source file which are used by elements in the Display Layout.
Folders that contain the above elements.

Interface

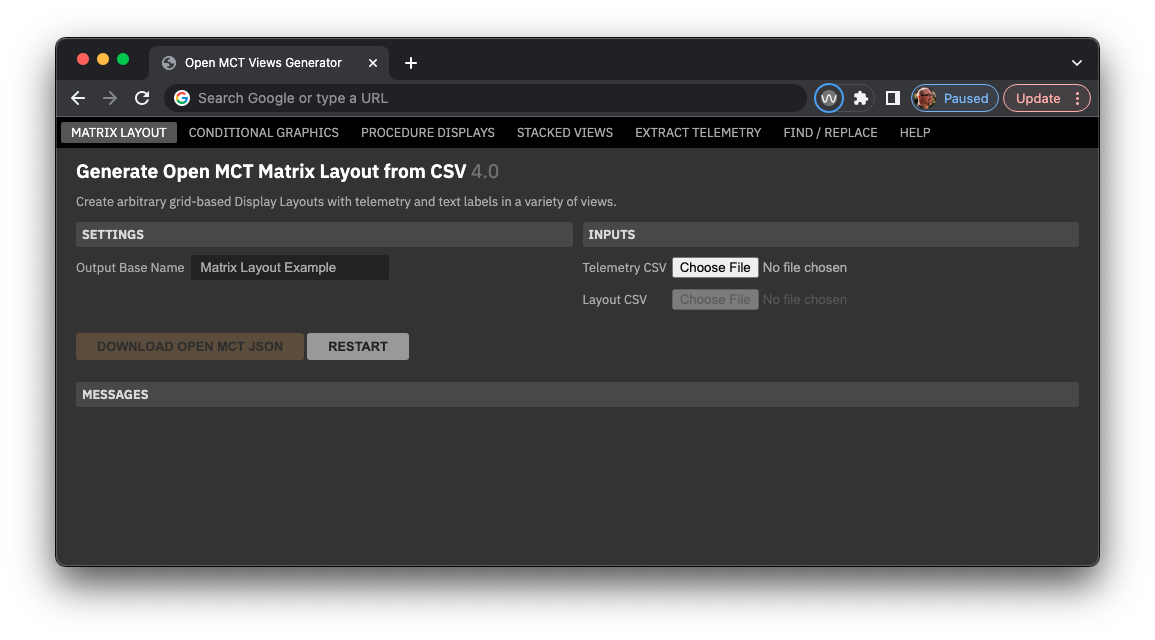

Picture of tool interface

Output Base Name: defines the base of names used to define output JSON files.
Telemetry CSV Input: a CSV file that defines paths to telemetry parameters, properties and condition properties.
Layout CSV: a CSV file that defines column widths, row heights, paths to telemetry parameters and text labels.

Matrix Layout Telemetry CSV Input File

This file defines the telemetry points and associated Condition Sets to be used in the matrix Display Layout. When the condition cells (condDefault, cond1, etc.) are populated for a row, a Condition Set will be created that incorporates and evaluates the telemetry parameter in column "dataSource".

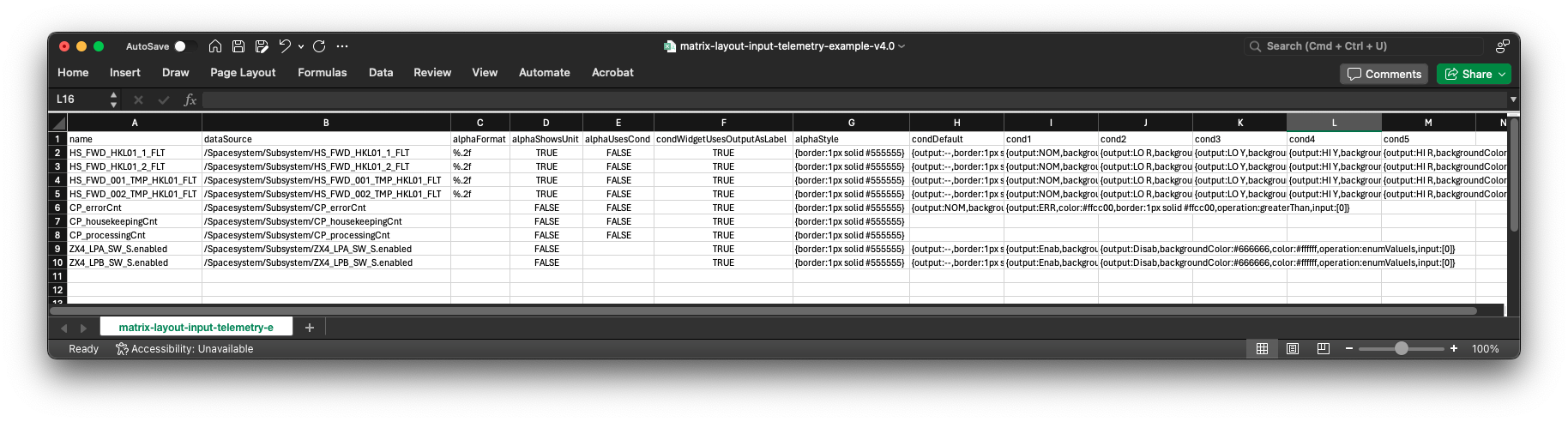

Picture of CSV file

Column	Description	Example
name	Name of the parameter; used by generated Condition Widgets. See below for more.
dataSource	Full path for the parameter using forward-slashes to denote containers and periods for aggregates, like: "/SpacecraftSystem/Subsystem/folder/aggregate.parameterName". Can be copied directly from Yamcs or other mission spec documents.	/Spacesystem/Subsystem/parameter_name.aggregate_name
alphaFormat	A printf string to be applied to numeric alphanumerics in a Display Layout. For example, "%.2f" will round a numeric parameter to two decimal points.	%.2f
alphaShowsUnit	Either TRUE or FALSE to indicate if alphanumerics should include units when they are available.	TRUE
alphaUsesCond	Either TRUE or FALSE to indicate if the resulting alphanumeric should use a Condition Set and conditional styling. If TRUE, then at least one condition must be specified; see below for more.	TRUE
condWidgetUsesOutputAsLabel	Either TRUE or FALSE to indicate if generated Condition Widgets should use a generated Condition Set output string as a label. For example, a switch state widget could spec conditions that output "ON" and "OFF" and setting this to TRUE would cause the widget to display that text when the relevant conditions are matched. Settiing to FALSE will use the "name" property specified in that column.	TRUE
alphaStyle	Optional static styling to be applied to this data source, in whatever form, it manifests in a Display Layout. Condition and style arguments are denoted in a JSON-like string, enclosed in curly braces - see below for more info. Note that any Conditional Styling will override this value.	{backgroundColor:#660000,color:#ffffff,border:1px solid #ff0000}
condDefault	Properties and styles for the Default condition in the row's Condition Set. Condition and style arguments are denoted in a JSON-like string, enclosed in curly braces - see below for more info.a	{output:--,border:1px solid #555555}
cond1 - cond10	Styles and evaluation properties for up to ten Conditions in a Condition Set. Headers must be present for the extent of defined Conditions. e.g. if 99 of 100 rows only use two condition definitions, but a single row uses three conditions, the CSV must include headers for "cond1", "cond2" and "cond3". Condition and style arguments are denoted in a JSON-like string, enclosed in curly braces - see below for more info.	{output:ERROR,backgroundColor:#660000,color:#ffffff,border:1px solid #ff0000,operation:greaterThan,input:[100]}

Style and Condition Arguments

Style and condition arguments are defined in a JSON-like string format, in this form: { property:value,property:value,etc. } Note that both property names and values don't use quotes around them.

Argument Property	Description	Example
output	A string output by a matching condition in a Condition Set.	{output:ERROR} {output:Nominal}
operation	One entry from the set of available Operations; see "Condition Operation and Inputs" below for details.	{operation:greaterThan} {operation:textContains}
input	Inputs appropriate for the chosen operation. Values here must be enclosed in square brackets [ ], even when the input is a string. See "Condition Operation and Inputs" below for details.	{input:[-10,10]} {input:[foo]}
backgroundColor	A hex color value for the background of a stylable element, specified as a full hex value.	{backgroundColor:#660000}
color	A hex color value for the text color of a stylable element, specified as a full hex value.	{color:#cccccc}
border	A valid CSS property definition for a border of a stylable element. The color part must be specified as a full hex value.	{border:1px solid #ff0000}

Style and Condition Examples

Type	Description	Style / Condition String
All	Give an alphanumeric, text object or Condition Widget a dark red background, red border and white text.	{backgroundColor:#660000,border:1px solid #ff0000,color:#ffffff}
All	If the telemetry is present on the server, output the string "Defined" with a medium gray background and white foreground.	{output:Defined,backgroundColor:#666666,color:#ffffff,operation:isDefined}
Numeric	If the current float telemetry value is between than -0.1 and 0.2, output the string "Nominal" with an green background and white foreground.	{output:Nominal,backgroundColor:#368215,color:#ffffff,operation:between,input:[-0.1,0.2]}
Numeric	If the current float telemetry value is greater than 0.2, output the string "High" with an orange background, yellow border and white foreground.	{output:High,backgroundColor:#ff6600,color:#ffffff,border:1px solid #ffcc00,operation:greaterThan,input:[0.2]}
Enum	If the current enum parameter is "enabled", output the string "Enabled" with a green background and white foreground.	{output:Enabled,backgroundColor:#368215,color:#ffffff,operation:enumValueIs,input:[1]}

Condition Operations and Inputs

Telemetry Type	Operation	Description	Condition operation literals	Comparison input format	Example	Notes
All	Is Defined	Matches if the telemetry endpoint is present and available from Yamcs, even when it doesn't have a value.	isDefined, isUndefined	No comparison value	N/A
All	Data older than		isStale	Number of milliseconds	1500
Float	Equality	Compares a current telemetry value to the Comparison value with equality.	equalTo	Single number	100	Note that Float and Integer telemetry types and comparisons are not compatible, i.e. a telem value of 0.000 will not match a comparison value of 0. Use Greater/less than comparisons in these cases.
Float	Greater/less than		greaterThan, lessThan, greaterThanOrEq, lessThanOrEq	Single number	100
Float	Between		between, notBetween	Two numbers separated by a comma	-100,100
Enumeration	Enum value equality		enumValueIs, enumValueIsNot	Raw numeric of the enumeration, not the enumeration string	1
String	Contains		textContains, textDoesNotContain	Text	ooba
String	Starts/Ends		textStartsWith, textEndsWith,	Text	Foo
String	Equality		textIsExactly	Text	Foobar

Escaping Text

The tool uses certain special characters (commas, tildes and backslashes) to separate arguments and define telemetry paths - these characters can't be used in text labels without being escaped. To use these characters for text, they must be escaped with a forward slash "\" as shown below.

Character	Format	Example	Resulting Display
Comma	\,	STATE (A\, F == Arm\, Fire)	STATE (A, F == Arm, Fire)
Tilde	\~	TEMP \~10 - 20 deg	TEMP ~10 - 20 deg
Backslash	\/	Use \/Spacesystem\/Subsystem	Use /Spacesystem/Subsystem

Matrix Layout "Layout" CSV Input File

The matrix layout defines a grid with variable column widths and row heights.

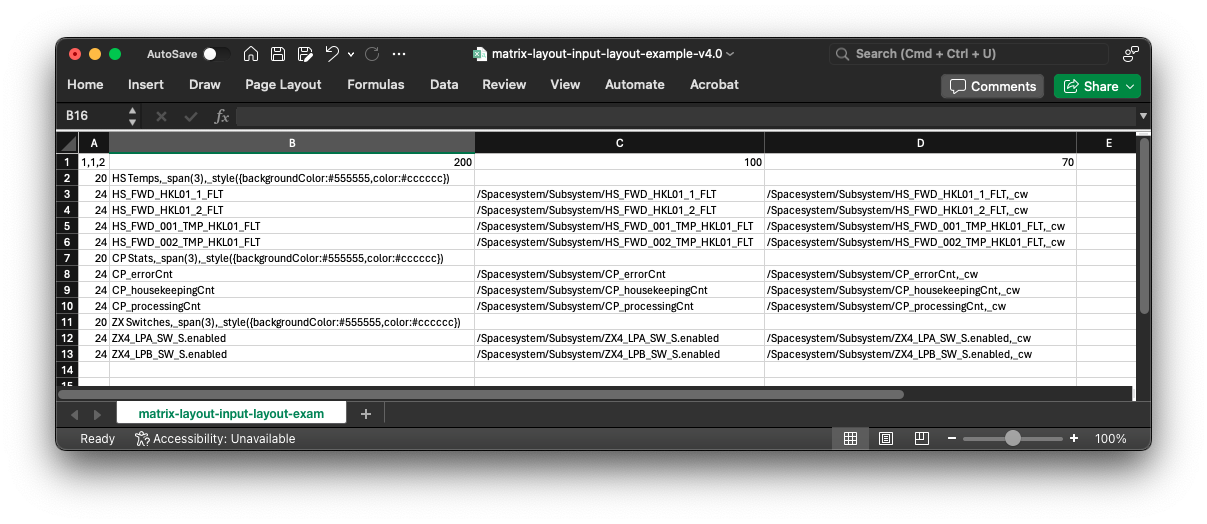

Picture of CSV file

Row 1 defines the width of columns in the grid, in layout grid units.
Column A defines the height of each row in the grid, in layout grid units.
Cell A1 contains 3 comma-separated values that control the grid dimensions and item margin:
- The first two values are the desired layout grid dimensions, which are the basis for grid units.
- The last value is the amount of margin between columns and rows, in grid units.
- For example, "1, 1, 4" will create a Display Layout with settings of grid X = 1, grid Y = 1, and 4 "grid units" of margin between columns and rows.
- If values are not provided in A1, the tool will use the default settings of 1, 1, 4.
Cells can contain text, or a path to a telemetry parameter.
- Text cells can contain optional "flags"; see below for more.
- Cells that start with "/" or "~" will be treated as parameter paths.
- You can use "/" or "~" characters as text, but only if they are escaped. See "Escaping Text" above.
Your telemetry file can include parameters that are not used by the layout file, but the converse is not true: parameters used in this file MUST be present in the telemetry CSV file used for a given matrix layout.

The resulting matrix layout output based on the CSV input above:

Using Optional Flags in the Layout CSV File

Both text and telemetry parameters accept certain "flag" arguments that allow additional capabilities and rendering options. More than one flag can be used at a time, separated with commas. Flags include:

Capability	Flag	Telemetry	Text	Example	Notes
Span multiple columns	_span(#)	YES	YES	SYSTEMS,_span(3)	A text element with "SYSTEMS" will span across the designated number of columns, starting at the element's current column.
Span multiple rows	_rspan(#)	YES	YES	SYSTEMS,_rspan(2)	A text element with "SYSTEMS" will span across the designated number of rows, starting at the element's current row.
Render as Condition Widget	_cw	YES		/SpacecraftSystem/Subsystem/aggregate.parameterName,_cw	Renders a Condition Widget for this telemetry parameter. If this parameter is set to use Conditions in the telemetry CSV input file, then a Condition Set will be created using those parameters.
Render as Hyperlink button	_link		YES	BUTTON LABEL,_link	A text element rendered as a Hyperlink button. Clicking the button will open the designated URL in a new browser tab. This element requires a _url() property, see below. Hyperlinks cannot be styled.
URL property	_url(url)		YES	BUTTON LABEL,_cw,_url(https://someurl.com)	Both Condition Widgets and Hyperlink buttons can be provided a _url() parameter; this is required for Hyperlinks and optional for Condition Widgets. Note that Open MCT only accepts valid nasa.gov URLs.
Style	_style({JSON string})	YES	YES	BUTTON LABEL,_style({backgroundColor:#660000,color:#ffffff,border:1px solid #ff0000})	A string of comma separated "property: value" elements as noted above.

Source

Telemetry CSV: Matrix Layout inputs Telemetry CSV example
Matrix Layout CSV: Matrix Layout inputs Layout CSV example

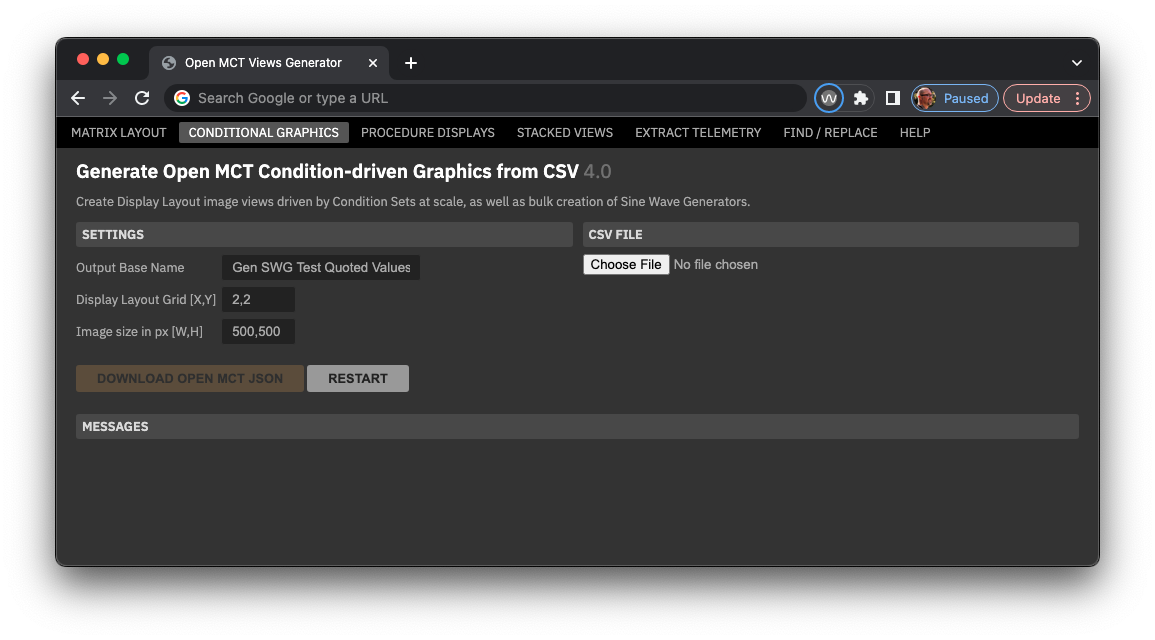

Conditional Graphics

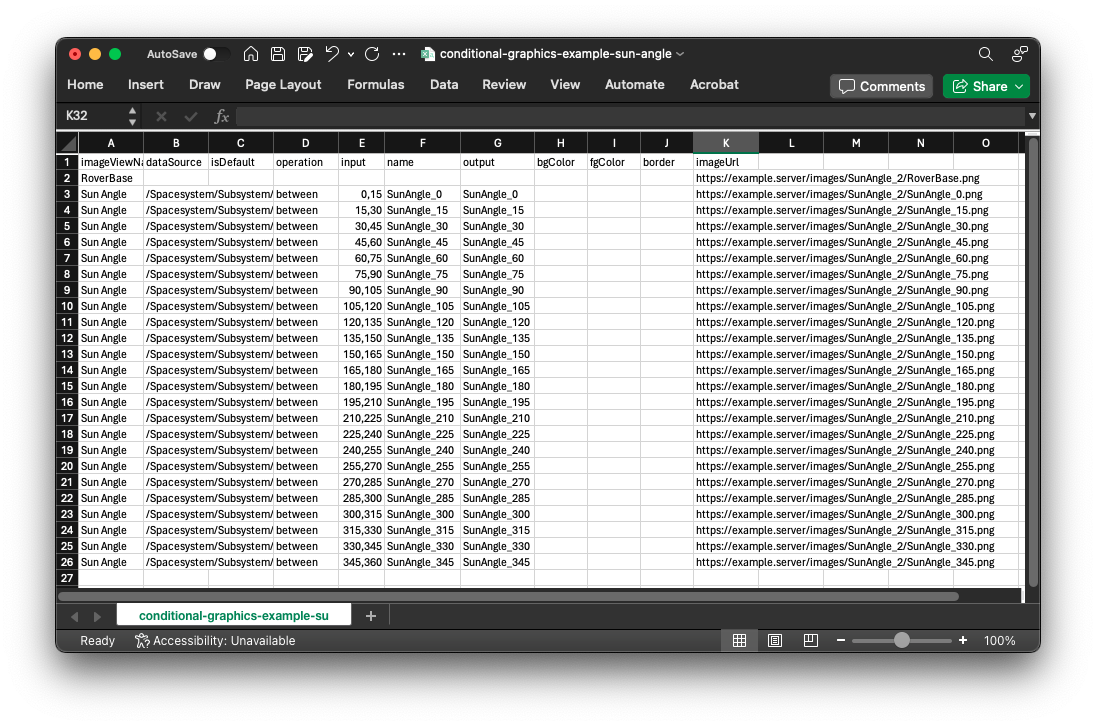

Generates one or more "image view" objects within a Display Layout. Image views can be conditionally styled to show a given image source when a condition in a Condition Set is matched. This example uses a sun angle telemetry parameter to display one of 23 different images of the "sun" graphic, overlaid on a base drawing of the rover, itself its own image view object.

Picture of rendered Display Layout
